03-07 Truck Electronic Throttlebody Hellcat Adapter

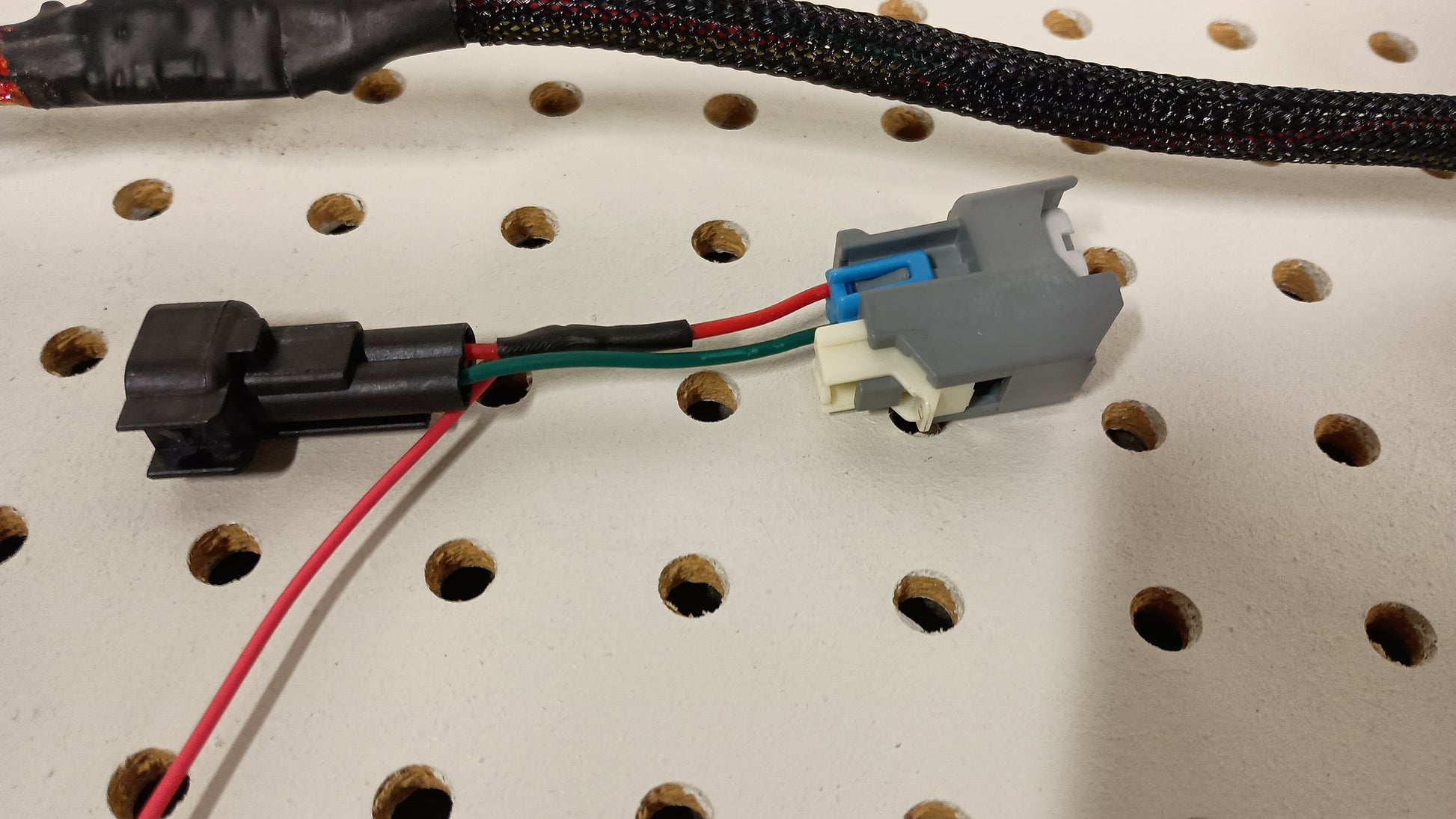

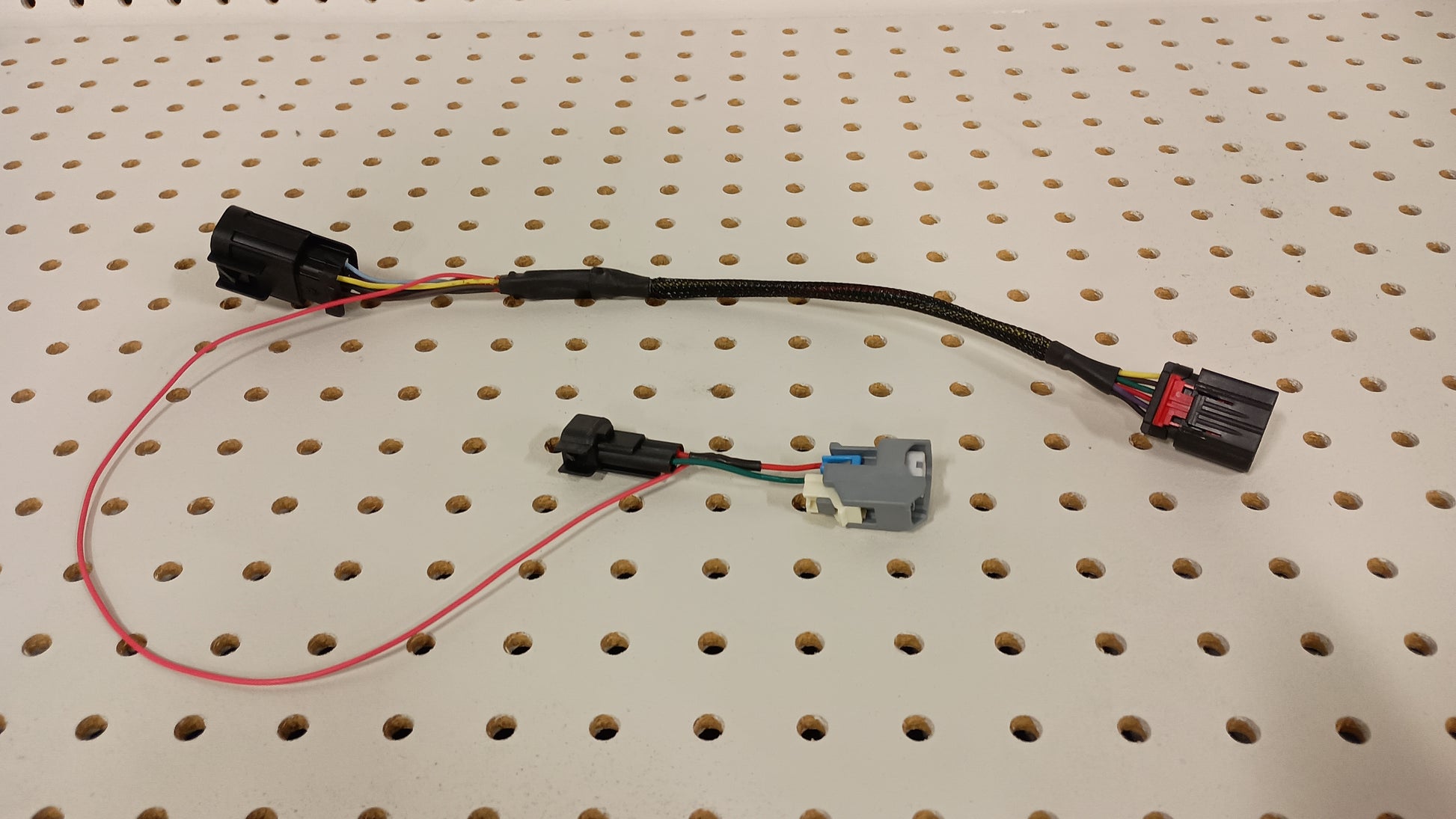

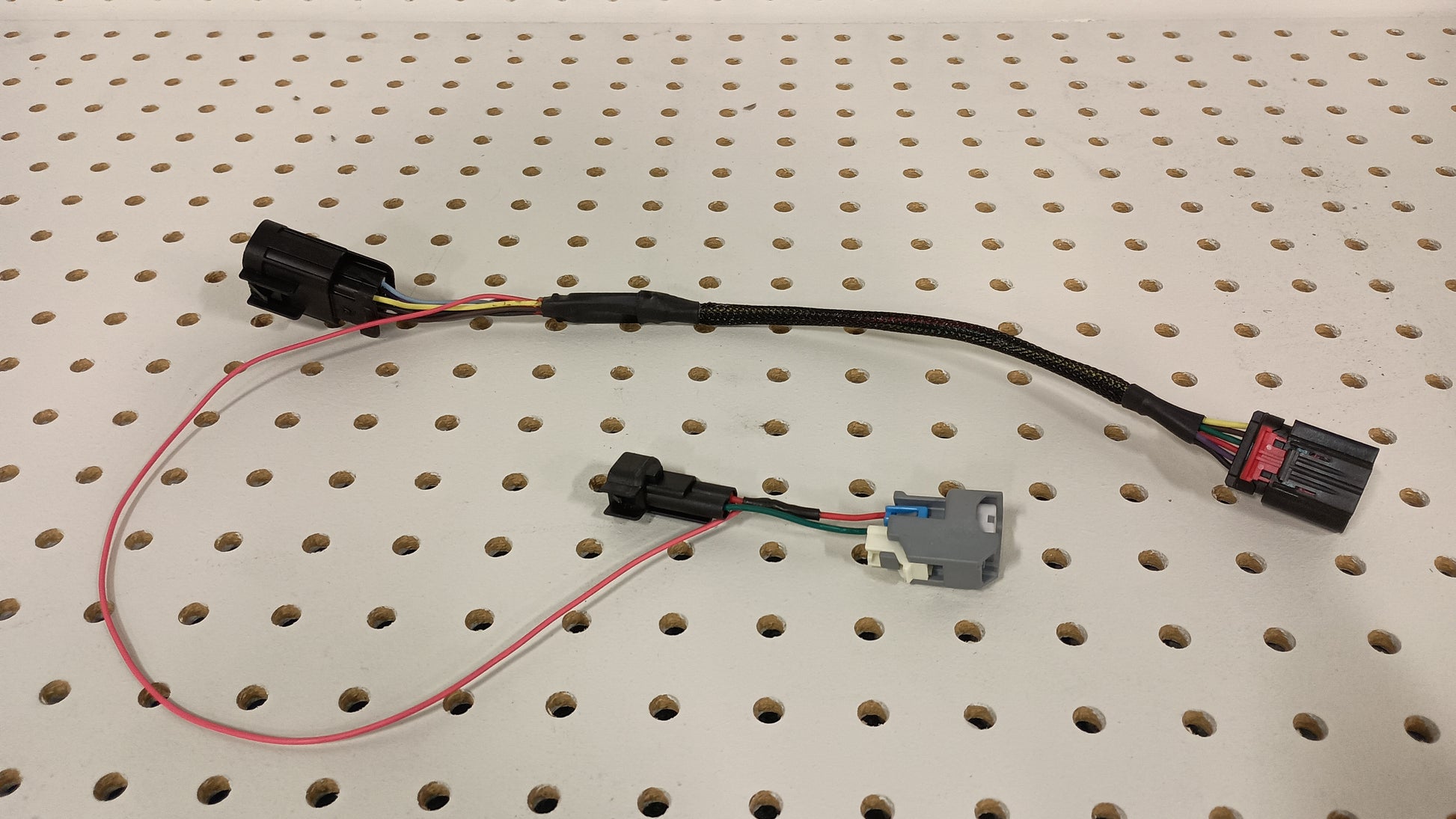

This adapter harness is designed to connect a Hellcat throttle body to 2002–2007 GM truck electronic throttle control systems. The harness is fully plug-and-play and only requires connection to a 12V ignition power source. It is intended for use with single 8-pin electronic throttle wiring harnesses and adapts them to the 6-pin Hellcat throttle body.

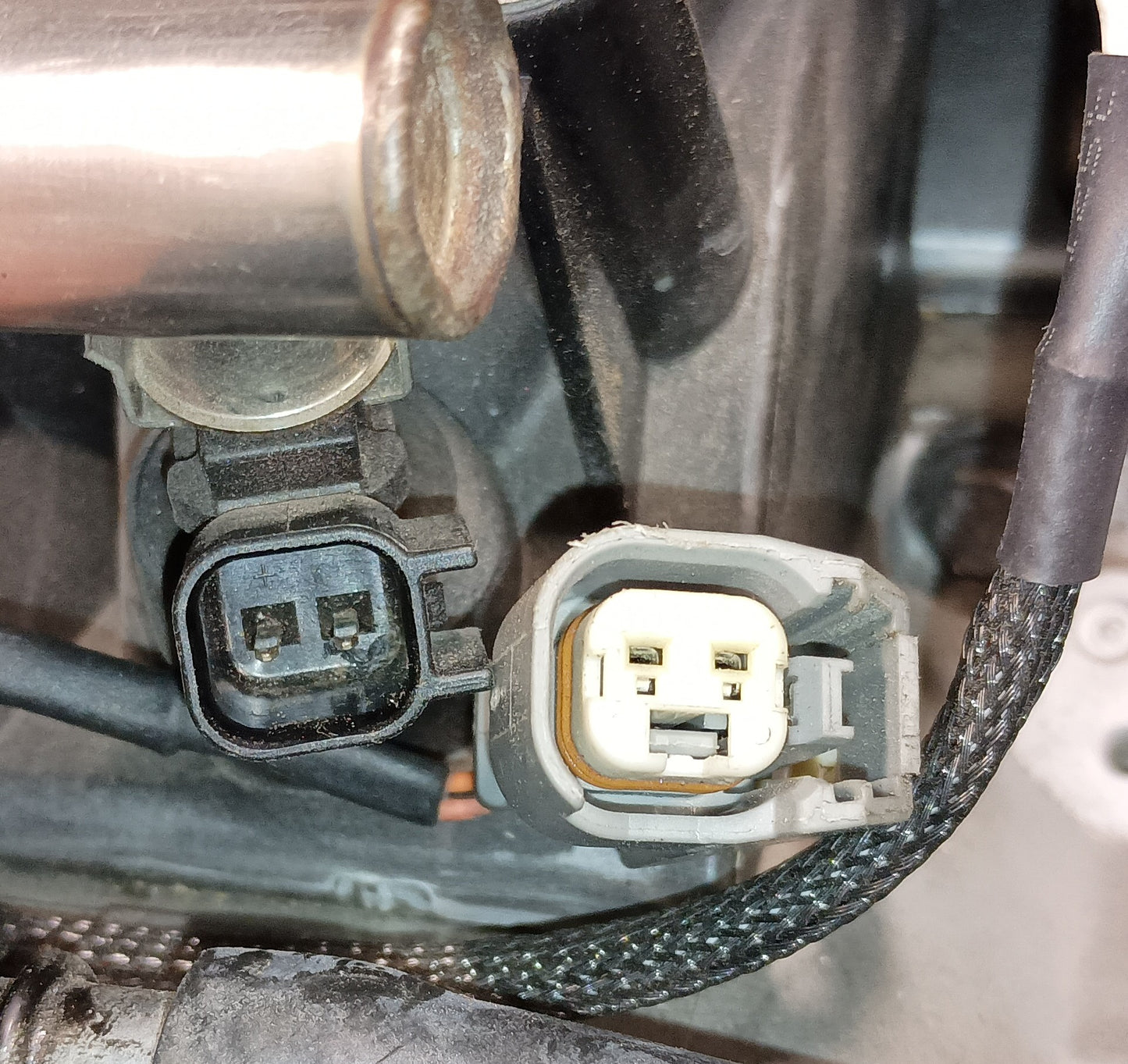

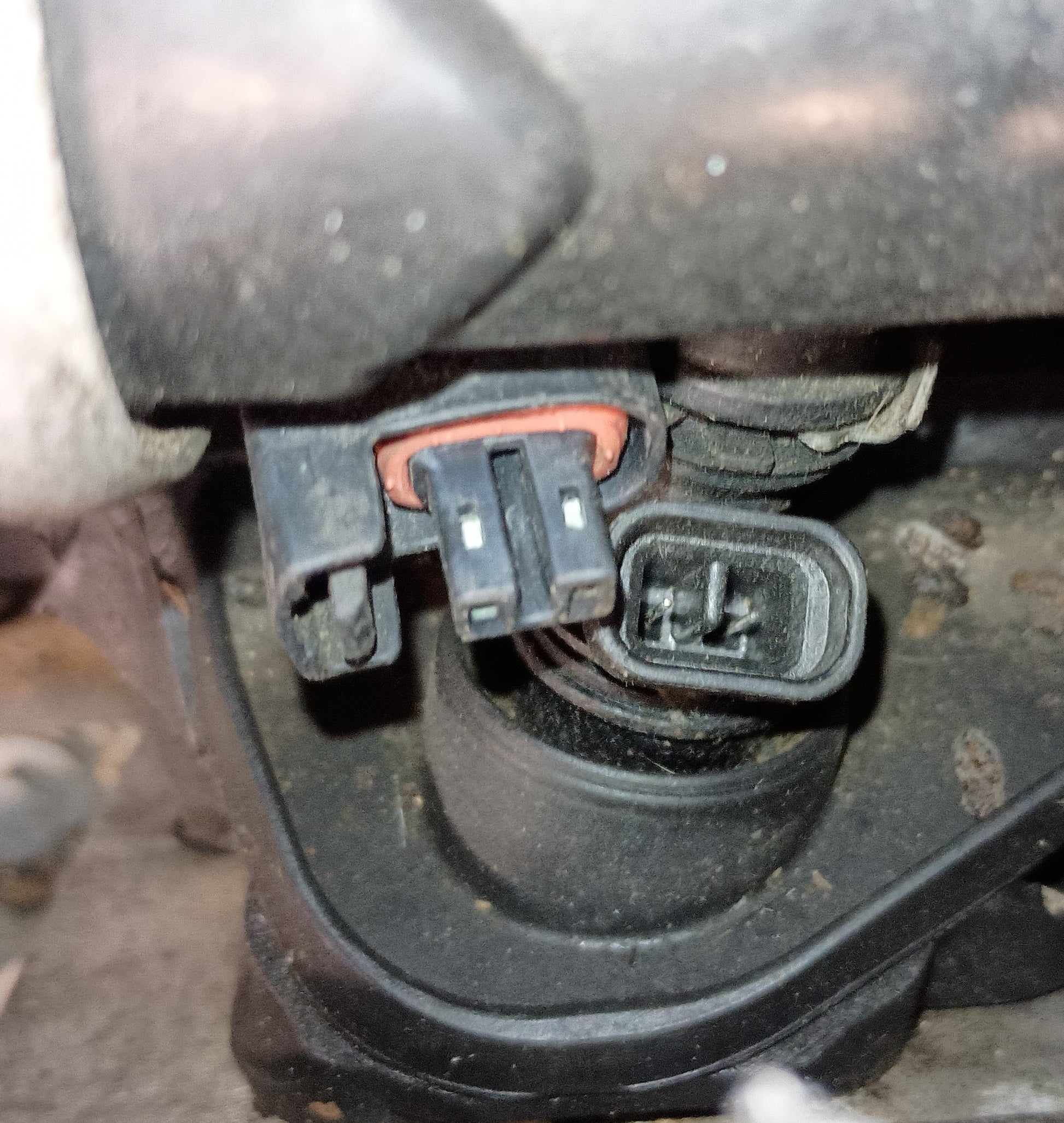

All OEM GM LS drive-by-wire (DBW) control systems can support operation of a Hellcat throttle body. Most applications only require replacement of the throttle body connector with the Hellcat-style connector. Systems using 8-pin DBW throttle bodies, as well as certain 6-pin silver-blade throttle bodies, utilize different electrical signaling and will require additional electronic adaptation.

⚠️ Vehicle and ECU compatibility should be verified before installation.

2003–2007 Chevrolet Silverado
2003–2006 Chevrolet Cheyenne
2003–2006 Chevrolet Avalanche
2003–2006 Chevrolet Tahoe
2003–2006 Chevrolet Suburban
2003–2004 Chevrolet Trailblazer
2004–2007 Chevrolet Express
2003–2004 Chevrolet SSR
2003–2007 GMC Sierra
2003–2006 GMC Yukon
2003–2004 GMC Envoy
2004–2007 GMC Savana
2004 Buick Rainier
2003–2006 Cadillac Escalade
2003–2004 Isuzu Ascender
2004–2007 Isuzu NPR
2003–2007 Hummer H2

These are made to order. Please allow 1-2 weeks for assembly

LM7 LR4 LQ4 LQ9 LM4 L33 L59
