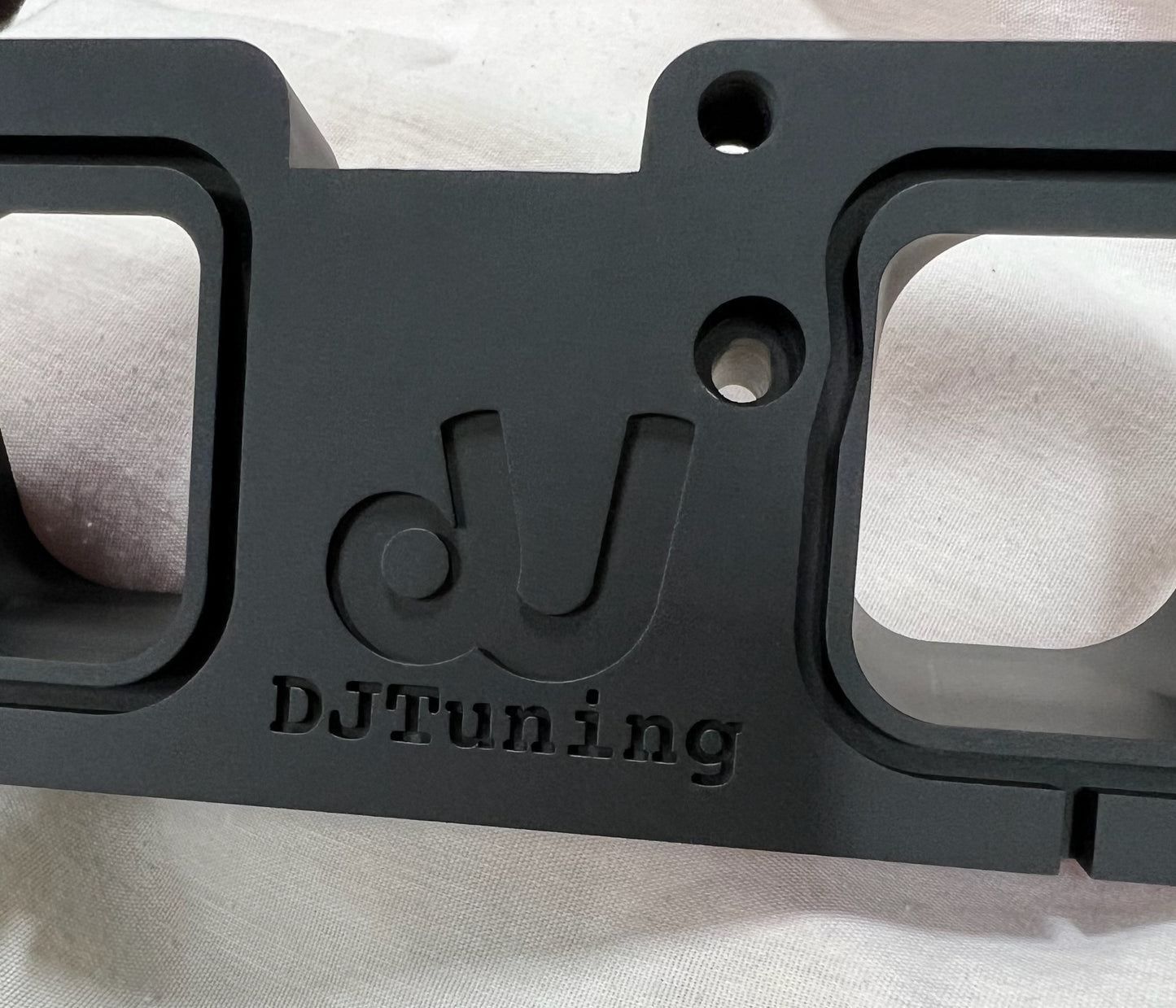

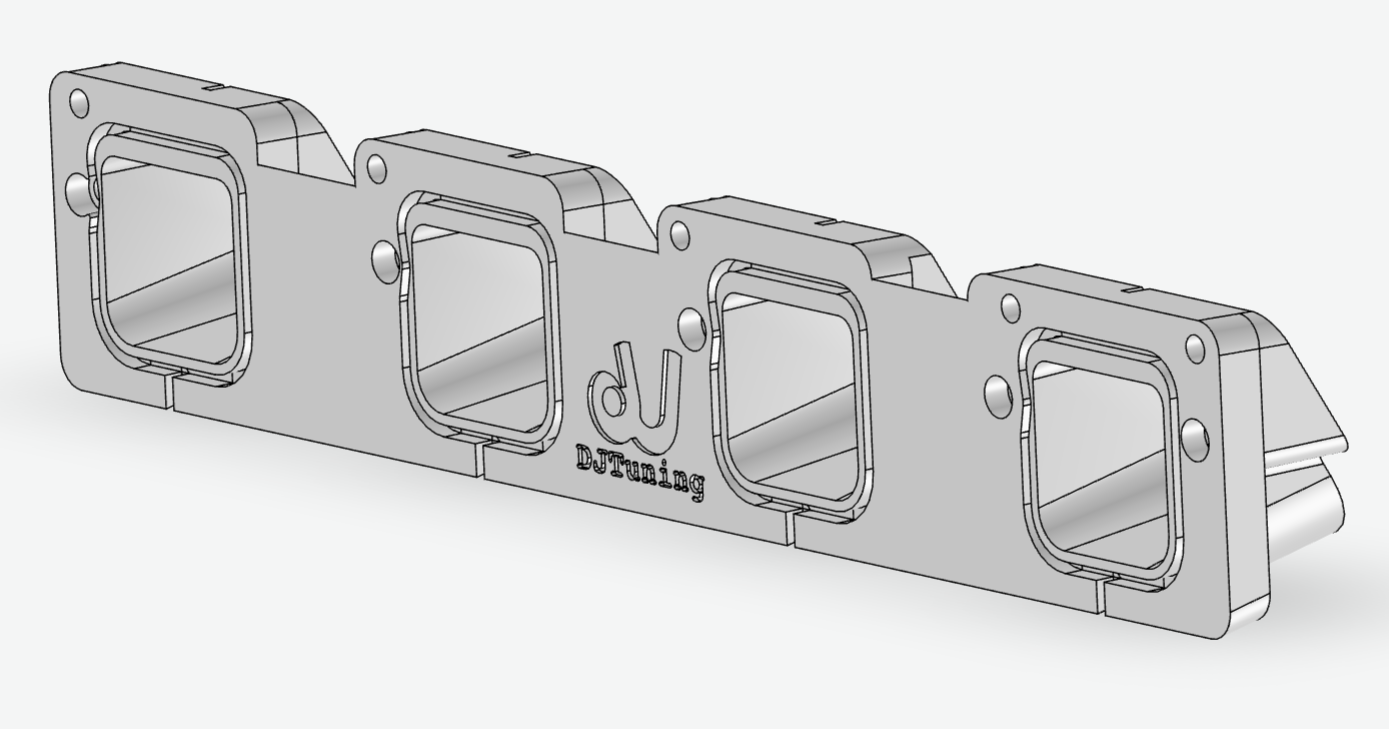

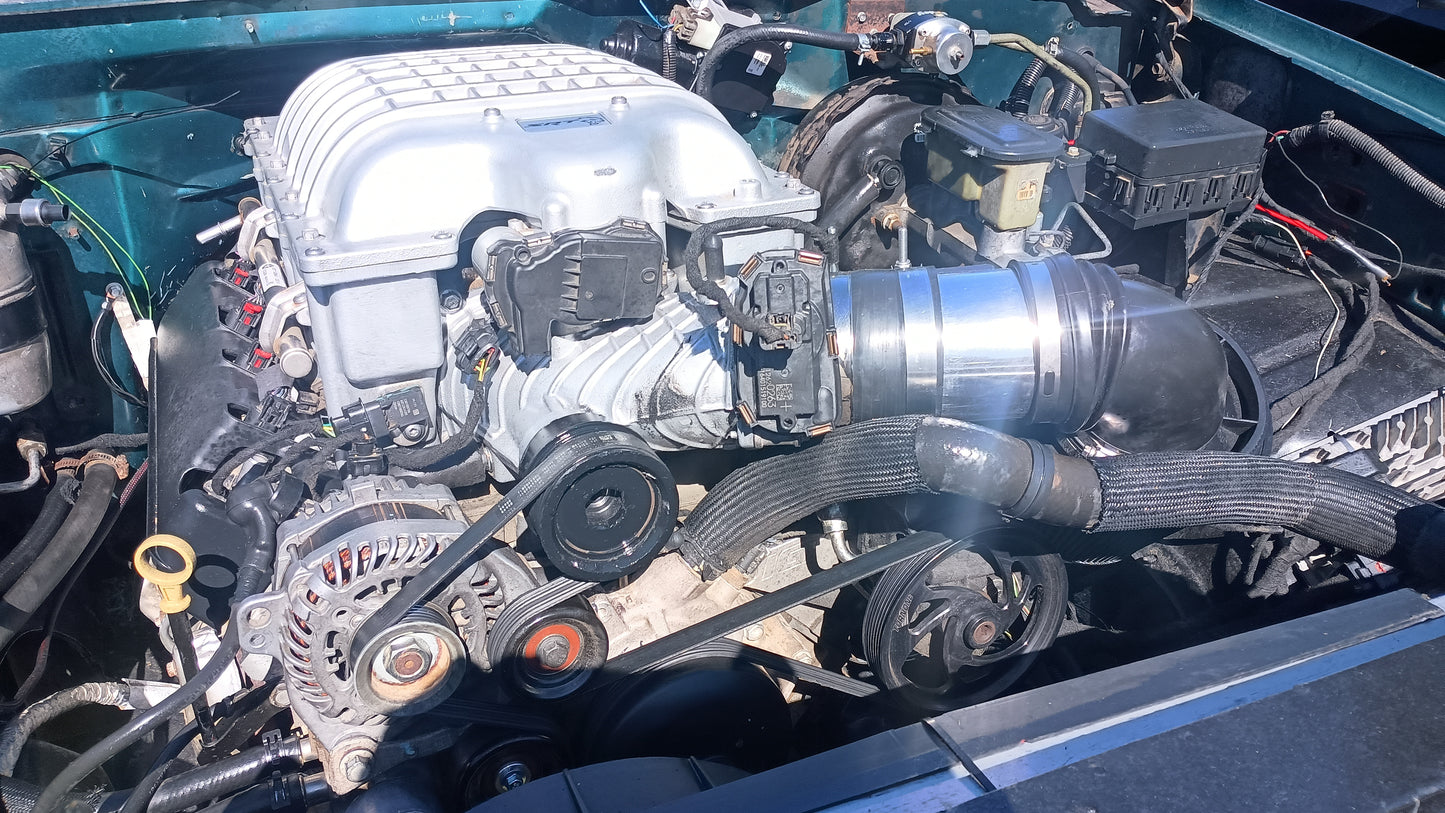

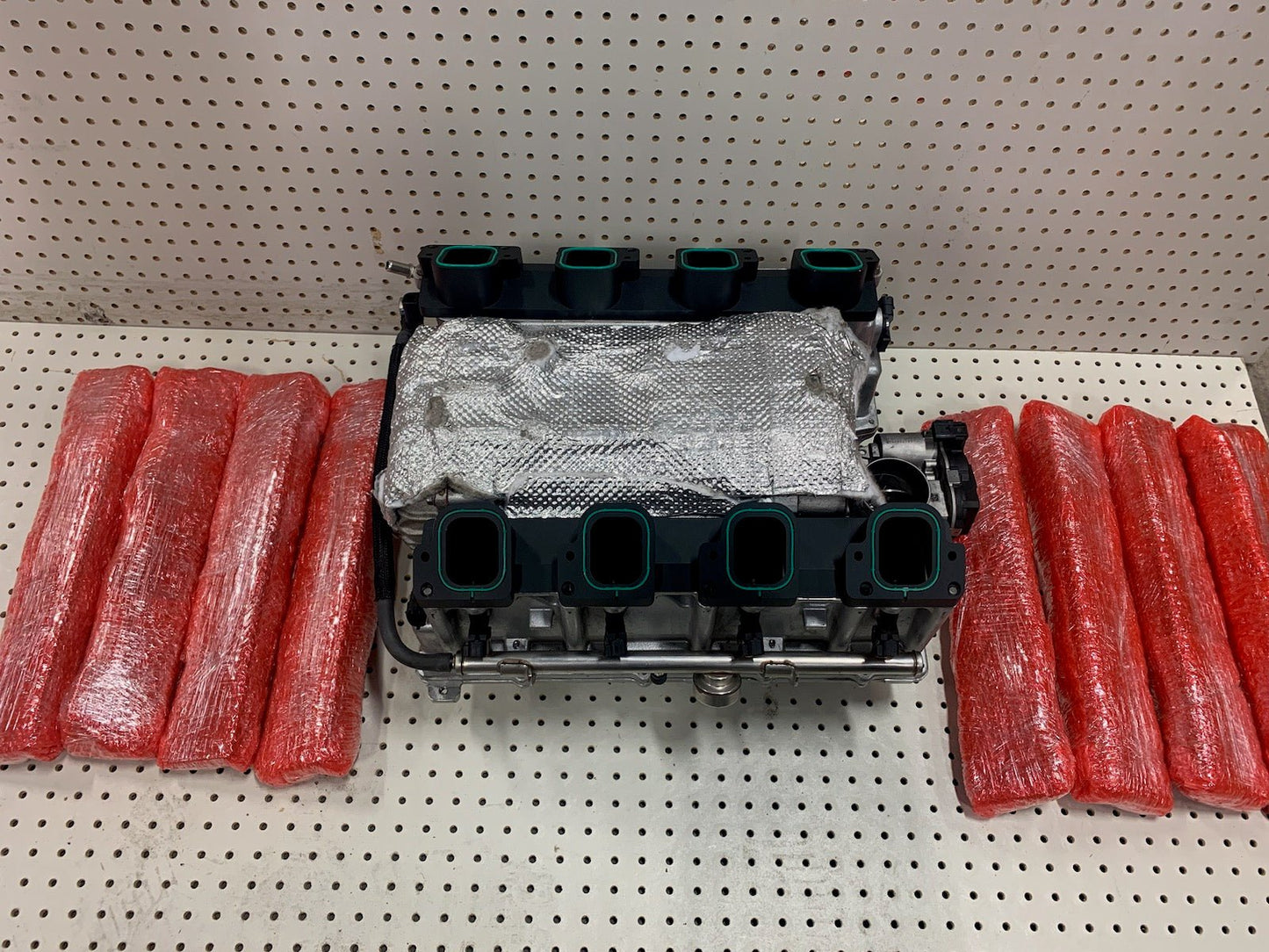

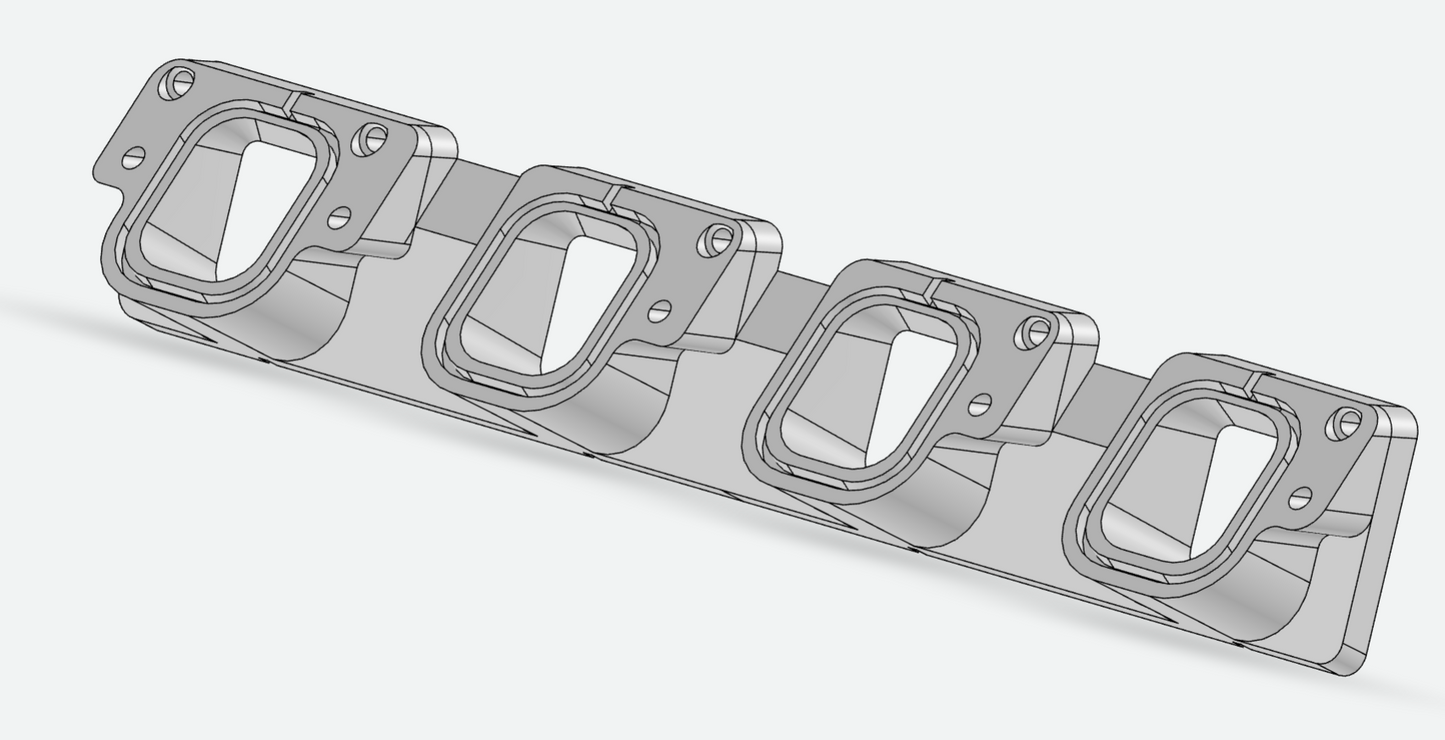

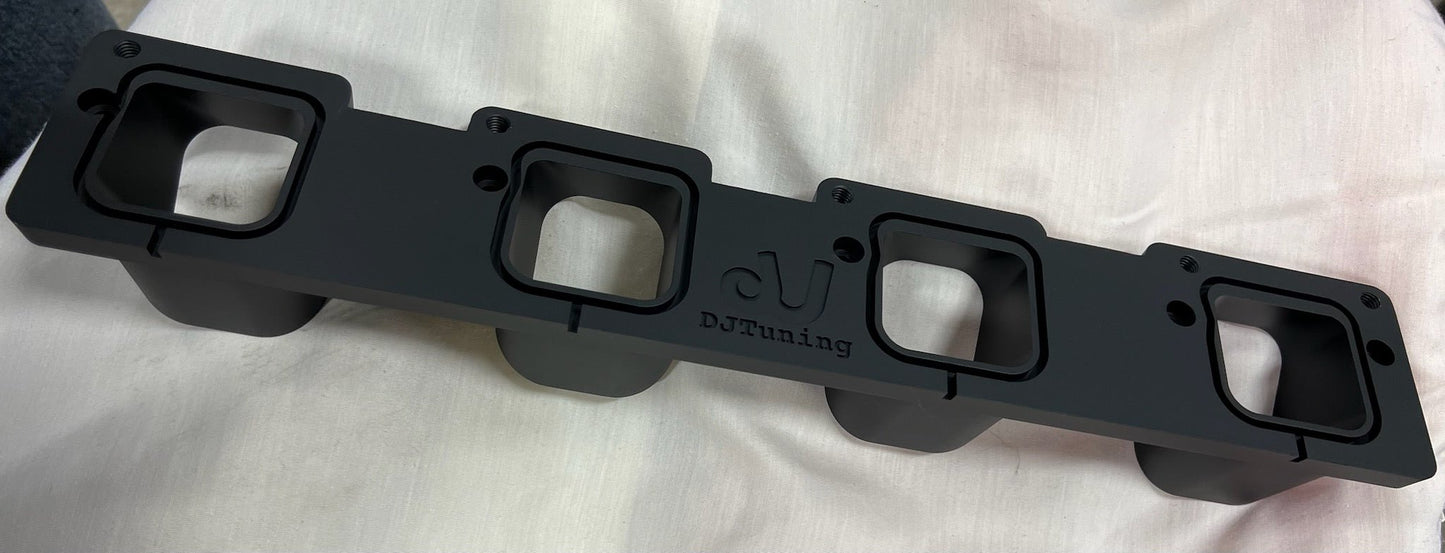

This is a set of adapter plates to bolt a hellcat supercharger onto a Gen V LT based GM engine. This will NOT fit on a gen III/IV LS Based motor. This also will NOT fit on a LT4 due to different intake bolt location. This kit uses Gen V LT intake seals on both sides of the adapter. The direct injection system can be used as is without relocating the fuel inlet as the adapter fits over all of the stock fuel system.
The Kit includes

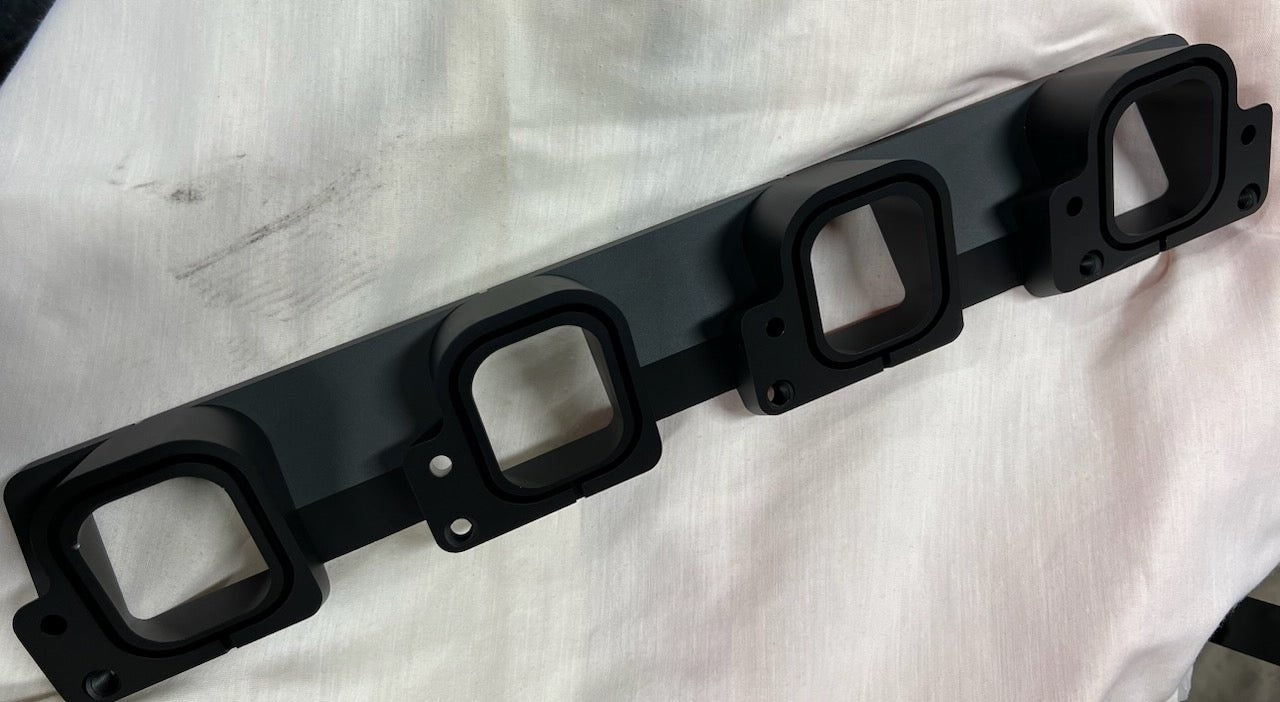

2 adapter plates.
10 bolts to attach the adapter plates to the engine

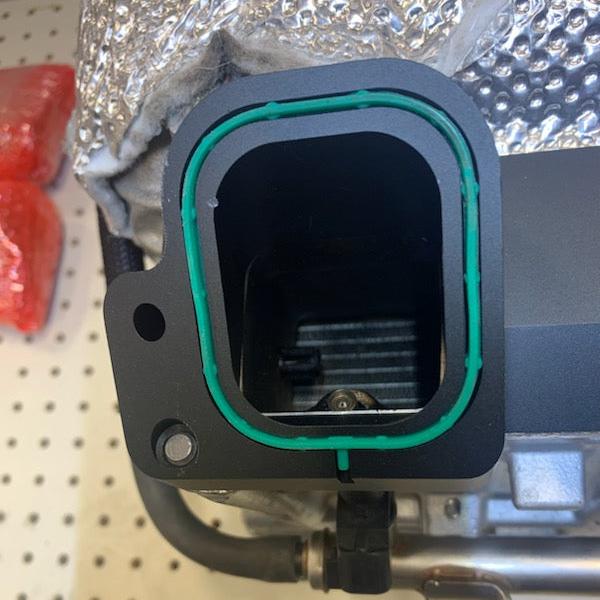

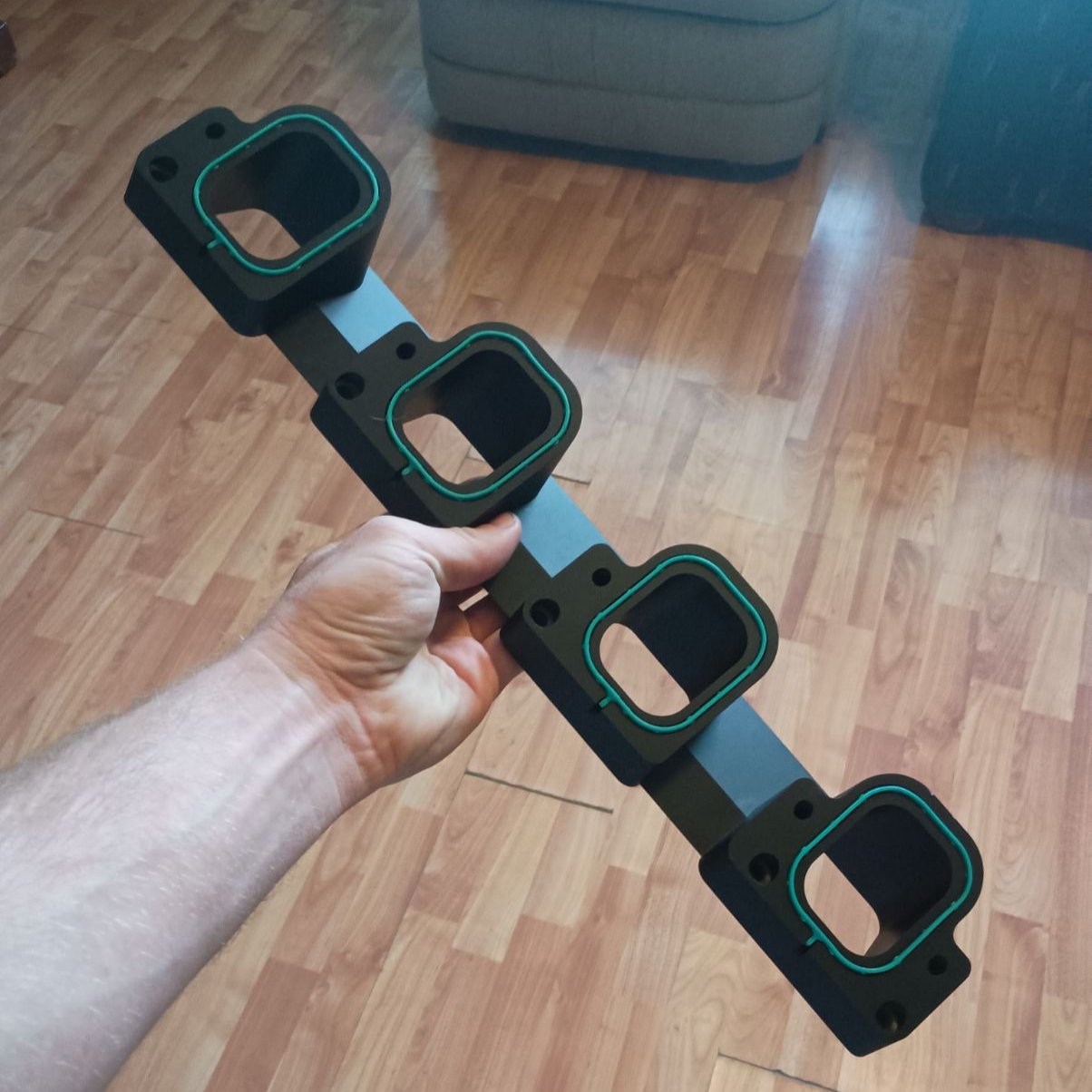

2 sets of 8x seals to seal the adapters to the supercharger, and the adapters to the engine.
Things needed that the kit does not include
Correct pulley to line up with serpentine system. Aftermarket pulley can be purchased and may be able to adjust spacing by flipping the pulley on the hub. Custom Griptec hub with LT4 and truck accesory spacing coming soon.
Throttlebody, Hellcat throttlebody cannot be used with Gen V electronics. The hellcat is analog and the Gen V electronics require digital SENT TPS signals. The LT4 throttle body has 2 bolts that line up and a third that can be slotted to line up.
Electronics to control the supercharger BPV. Options below
Standalone Hellcat Smoothboost controller
Standalone ECU with PWM output connected to a solid state relay
